Item no. OE-40-R-10

OE-40-R-10

Watch video

Features

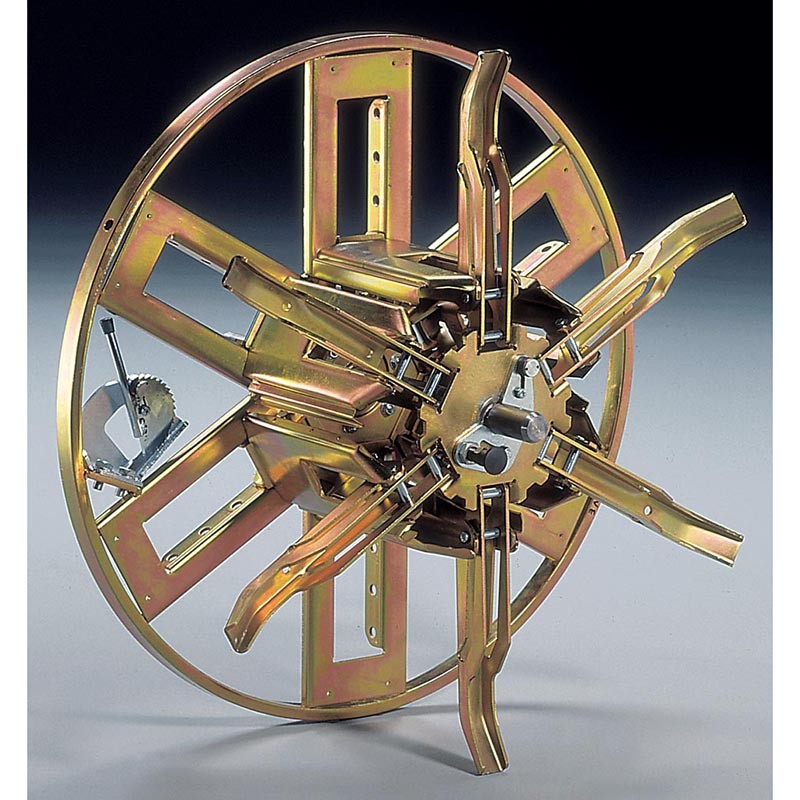

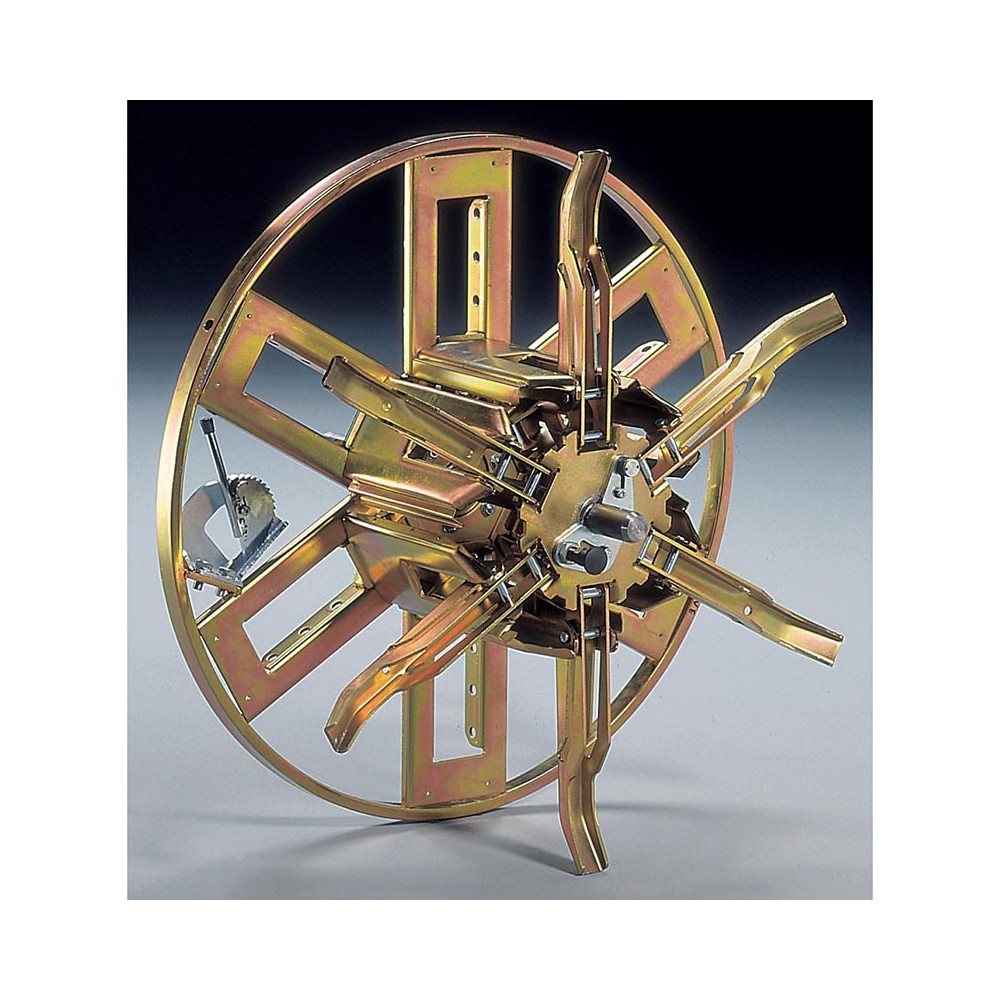

Coiling head in collapsible version for CD-40, replacing OE-40.
Cylindrical core during winding and tapered during removal to make the
coil easier to take off.
Diameter of fixed core: 320mm OR 520mm
Overall dimensions: diameter 1000mm width 500mm
Weight: 40 kg
Coil Diameter max. 950, fixed widths 90 or 200mm weight capacity 250 kg


NB: coilers can be ordered with different diameters and cores on request

Technical data sheet

Height (mm) 1000 mm
Width (mm) 500 mm
Length (mm) 1000 mm
Weight (kg) 40 kg
Core - max. diameter (mm) 520 mm
Core - min. diameter (mm) 320 mm
Coil - max. width (mm) 200 mm
Coil - min. width (mm) 90 mm
Coils - max. diameter (mm) 950 mm
Max. coil weight 250 kg
