AUTOMAT300-16/30-MP MEDIUM PERFORMANCE - approx. 120 operations a day on average

AUTOMAT300-16/30-MP

Features

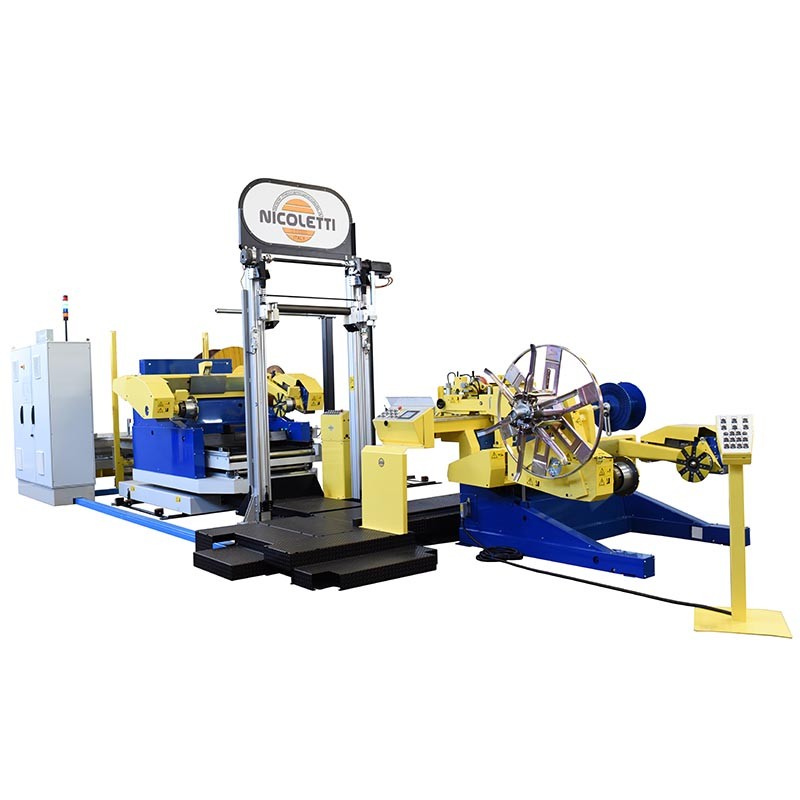

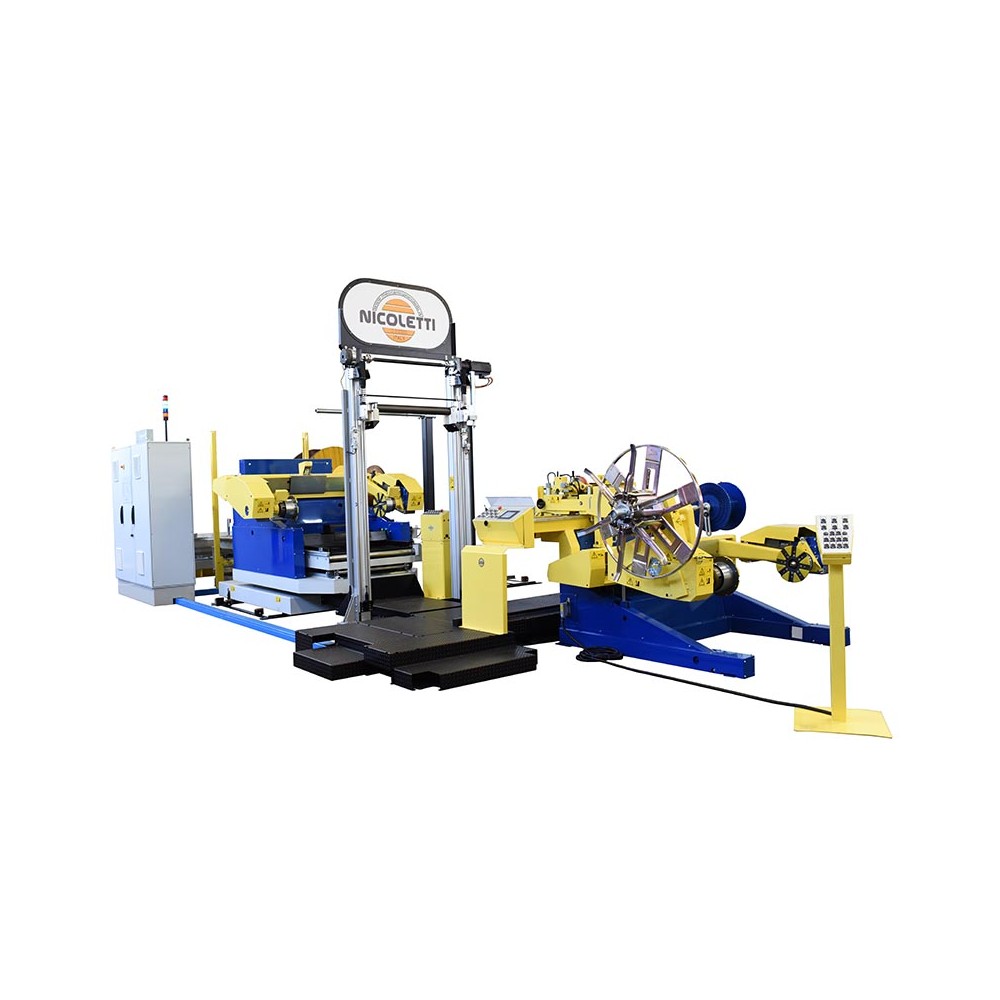

AUTOMATED REWINDING LINE AUTOMAT300-16/30-MP

  1. AUTOMATIC PAYOFF (Reference position [1] on technical data sheet): drum diameter range Ø600mm to Ø1600mm, drum width range 310mm to 1150mm, winding motor power 11kW
  2. AUTOMATIC TAKE-UP (Reference position [2] on technical data sheet): drum diameter range Ø600mm to Ø1600mm, drum width range 310mm to 1150mm, winding motor power 11kW
  3. Automatic layering with LASER alignment sensors (Reference position [12] on technical data sheet)
  4. Automatic cable diameter measuring (Reference position [3] on technical data sheet)

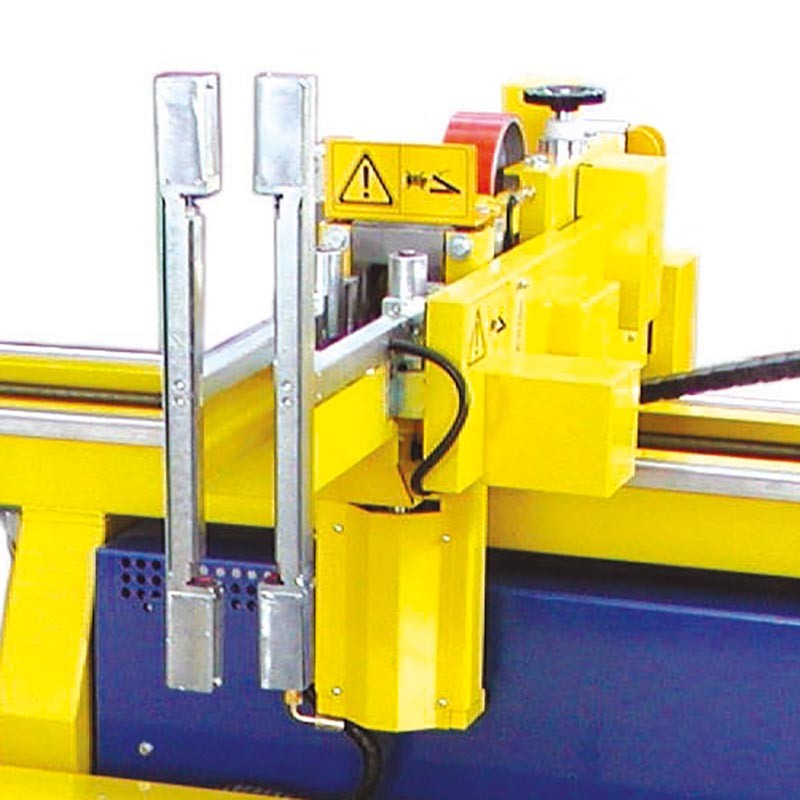

  5. Measuring device with horizontal and vertical cable guide rollers automatic opening and closing, for cable min. Ø4mm max. Ø60mm, tolerance ±0.5% (Reference position [3] on technical data sheet)
  6. Automatic drum data settings
  7. Automatic tensioning adjustment based on cable diameter with hydraulic tensioning brake ON PAYOFF, tension sensitivity min. 15kg, max. 100kg (Reference position [5B] on technical data sheet)

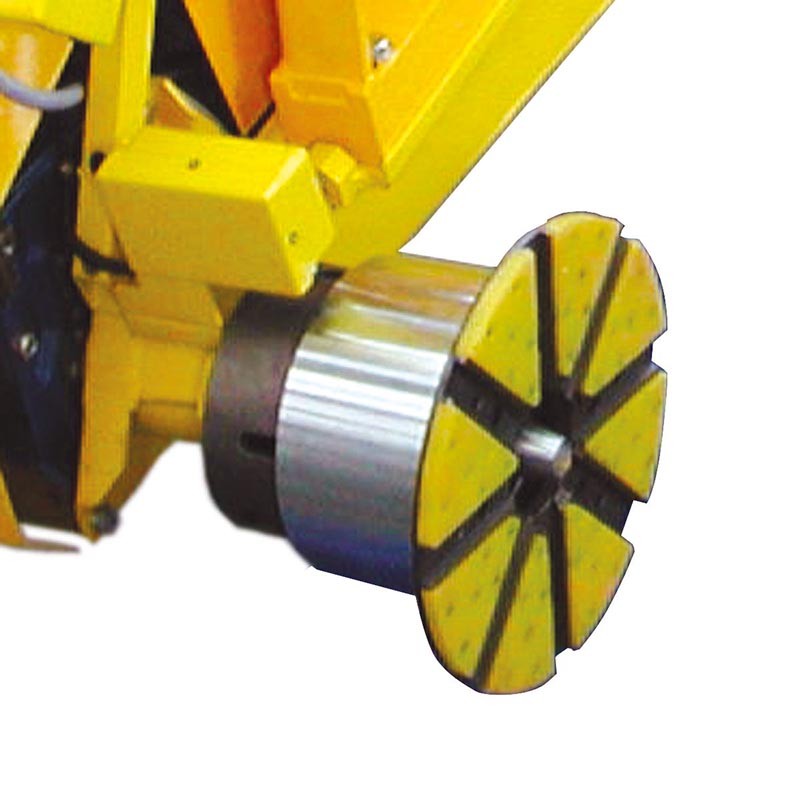

  8. Automatic coiling station, with collapsible coiling head with automatic opening of retaining spokes Ø1000mm width 90 to 200mm internal core 320mm fixed (option of 520mm fixed), pedal-operated automatic cable attachment, 3 x strapping at 120° to be performed by hand (Reference position [6A] on technical data sheet)
  9. Winding head for spools min. Ø100mm max. Ø500mm (Reference position X on technical data sheet) (Reference position [4] on technical data sheet)

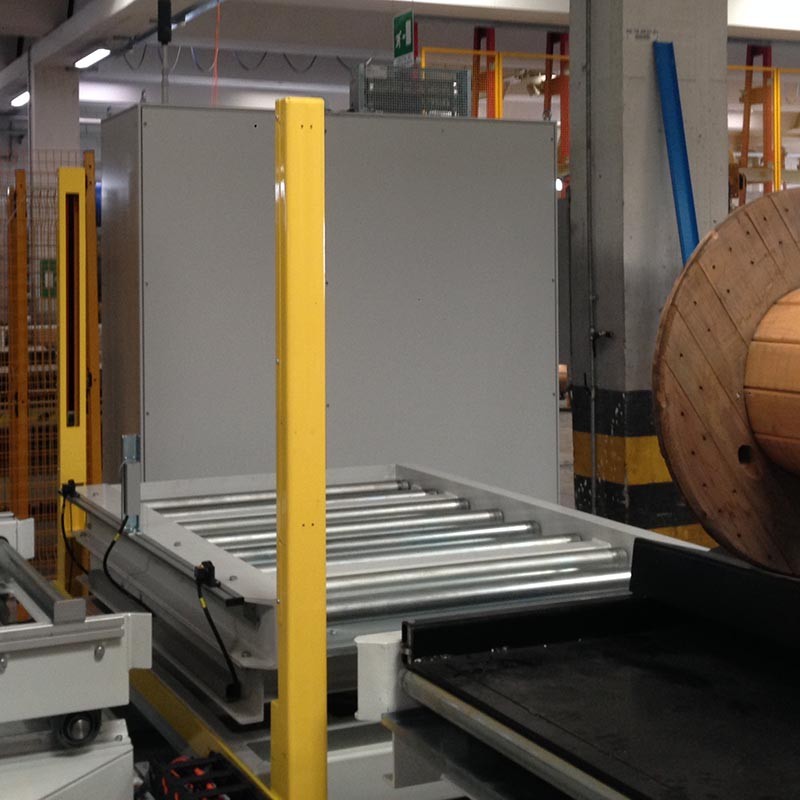

  10. Automatic roller conveyors with three loading stages (Reference position [7] on technical data sheet)
  11. Automatic drum bore height detection laser barrier (Reference position [13] on technical data sheet)
  12. Raised platform (Reference position [10] on technical data sheet)
  13. Safety guarding around the whole machine perimeter (Reference position [11] on technical data sheet)
  14. Console complete with PC for managing system interfacing with your data centre with our system PLC (Reference position [8] on technical data sheet)
  15. Hardware installed ready for remote servicing (Reference position [9] on technical data sheet)
  16. Portable battery-powered nail gun for nails L=50mm

SUMMARY OF PERFORMANCES, AUTOMATED AND MANUAL  OPERATIONS

  1. Maximum speed 300m/min

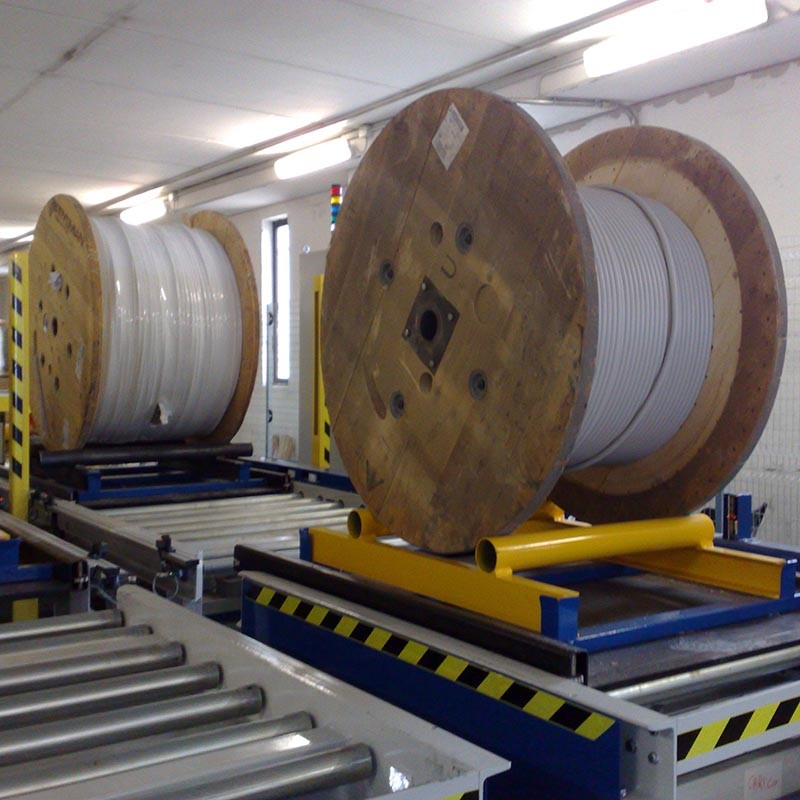

  2. Payoff drum handling from loading place towards payoff unit in automatic way
  3. Drum tightening and lifting in automatic way
  4. Payoff unit rotation in automatic way
  5. Cable diameter measurement in automatic way
  6. Cable layering according to the cable diameter in automatic way
  7. Automatic tensioning based on cable diameter from 15kg to 100 kg
  8. Drum lowering and arms opening after cutting in automatic way
  9. Payoff drum handling towards unloading place in automatic way
  10. Cable guide rollers automatic opening and closing on measuring device
  11. Pedal-operated automatic cable attachment on coiling head (by hand on Standard model)
  12. Opening of coiling head retaining spokes for coil removal in automatic way ( by hand on Standard model)
  13. Cable end to be taken by hand from payoff drum to take-up drum.
  14. Coil strapping at 120° to be performed by hand

Technical data sheet

System height (mm) 4000 mm
System width (mm) 6200 mm
System length (mm) 15200 mm
System empty weight (kg) 4300 kg
Drums- Max. weight capacity (kg) 3000 kg
Total power (kW) 55 KW
Power usage (kW) 22 KW
Min./max. rpm (rpm at drum) 0-240 giri/min
Speed max. (m/min) 0-300 m/min
Max. winding torque (N/m) 972 N/m
Size tolerance (±%) ±0,5%
Winder - Max. drum diameter (mm) 1600 mm
Winder - Max. drum width (mm) 1130 mm
Winder - Min. drum diameter (mm) 600 mm
Winder - Min. drum diameter (mm) 300 mm
Coiling station - Max. coil diameter (mm) 890 mm
Coiling station - Max. core diameter (mm) 520 mm
Coiling station - Min. core diameter (mm) 320 mm
Coiling station - Max. coil width (mm) 200 mm
Coiling station - Min. coil width (mm) 90mm
Payoff - Max. drum diameter (mm) 1600 mm
Payoff - Max. drum width (mm) 1130 mm
Payoff - Min. drum diameter (mm) 600 mm
Payoff - Min. drum diameter (mm) 300 mm

Accessories included

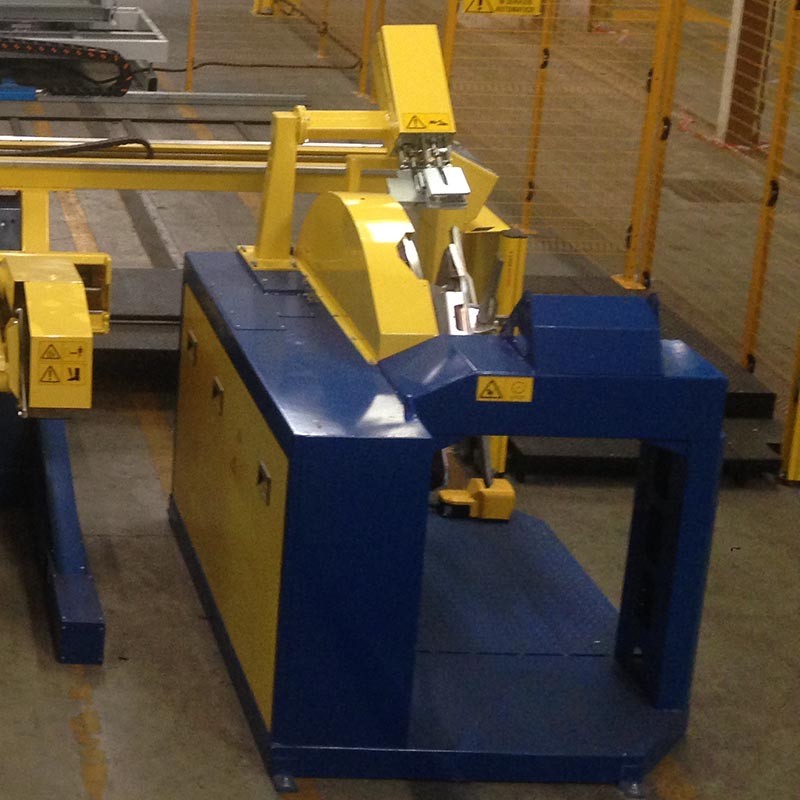

Item no. PZA300-15/80-S-AUT

Automatic grippers for payoff

DETAILS

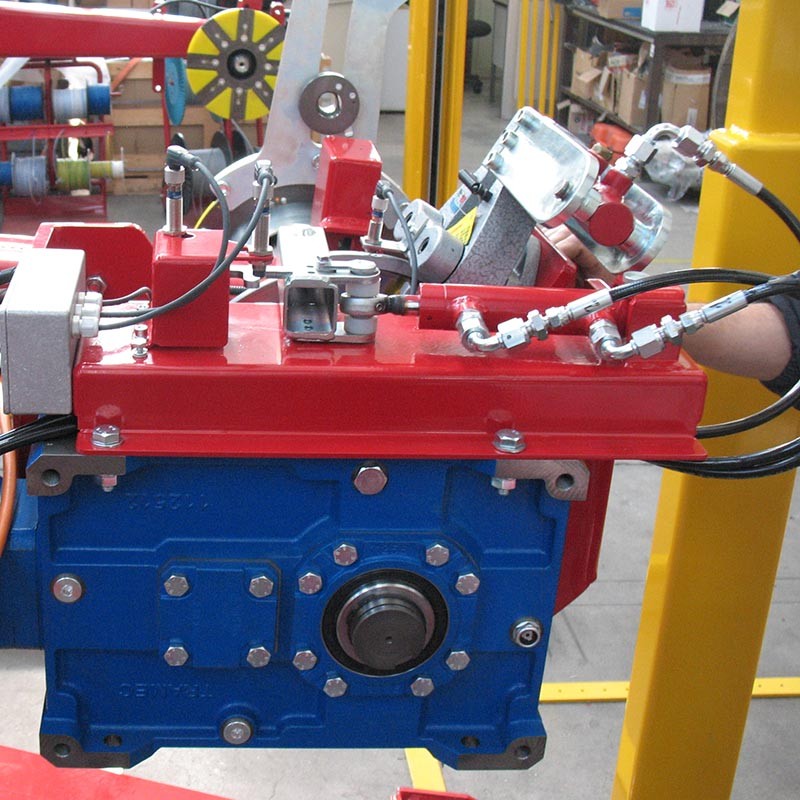

Item no. PZA300-15/80-A-AUT

Automatic grippers for payoff

DETAILS
Item no. STRAT-LASER-16

Automatic layering device with LASER control

DETAILS
Item no. CHIUS-AUT-RUL

Automatic roller closing

DETAILS
Item no. MSA/16

Semiautomatic coiling station

DETAILS
Item no. T-FR-OL

Hydraulic tensioning

DETAILS
Item no. RULCAR

Automatic pallet roller conveyors

DETAILS
Item no. BA-LASER-AUT

Automatic drum bore detection laser barrier

DETAILS
Item no. CHIOD50-BAT

Battery-powered nail gun

DETAILS
