AUTOMAT200-16/30-B1-P-1S Up to 70 operations a day on average

AUTOMAT200-16/30-B1
Zoom

AUTOMAT200-16/30-B1-P-1S

Change performance choice >
Watch video

Features

AUTOMATED REWINDING LINE AUTOMAT200-16/30-BA1

  1. AUTOMATIC PAYOFF (Reference position [1] on technical data sheet): drum diameter range Ø600mm to Ø1600mm, drum width range 310mm to 1150mm, pulling with adjustable automatic hydraulic tensioning min. 15kg, max. 100kg
  2. AUTOMATIC TAKE-UP (Reference position [2] on technical data sheet): drum diameter range Ø600mm to Ø1600mm, drum width range 310mm to 1150mm, winding motor power 11kW
  3. Automatic layering with perpendicularity alignment sensors (Reference position [12] on technical data sheet)
  4. Automatic cable diameter measuring (Reference position [3A] on technical data sheet)
  5. Measuring device with horizontal and vertical cable guide rollers manual opening and closing, for cable min. Ø4mm max. Ø60mm, tolerance ±0.5% (Reference position [3] on technical data sheet)
  6. Automatic drum data settings
  7. Automatic tensioning adjustment based on cable diameter with hydraulic tensioning brake ON PAYOFF, tension sensitivity min. 15kg, max. 100kg (Reference position [5B] on technical data sheet)
  8. Coiling head built into arm, with manual cable attachment, collapsible coiling head with manual opening of coil-retaining spokes, Ø1000mm width 90 to 200mm internal core 320mm fixed (option of 520mm fixed) (Reference position [6B] on technical data sheet)
  9. Winding head for spools min. Ø100mm max. Ø500mm (Reference position [4] on technical data sheet)
  10. Automatic one-stage roller conveyors, loading for reels already supplied on pallet only (Reference position [7] on technical data sheet)
  11. Automatic drum bore height detection laser barrier (Reference position [13] on technical data sheet)
  12. Raised platform (Reference position [10] on technical data sheet)
  13. Laser and fixed safety guarding around the whole machine perimeter (Reference position [11] on technical data sheet)
  14. Hardware installed ready for remote servicing (Reference position [9] on technical data sheet)
  15. Portable battery-powered nail gun for nails L=50mm

SUMMARY OF PERFORMANCES, AUTOMATED AND MANUAL  OPERATIONS

  1. Maximum speed 200m/min
  2. Payoff drum handling from loading place towards payoff unit in automatic way
  3. Drum tightening and lifting in automatic way
  4. Payoff unit rotation in automatic way
  5. Cable diameter measurement in automatic way
  6. Cable layering according to the cable diameter in automatic way
  7. Automatic tensioning based on cable diameter from 15kg to 100 kg
  8. Drum lowering and arms opening after cutting in automatic way
  9. Payoff drum handling towards unloading place in automatic way
  10. Cable guide rollers manual opening and closing on measuring device
  11. Cable attachment on coiling head to be performed by hand
  12. Coil strapping at 120° to be performed by hand
  13. Opening of coiling head retaining spokes for coil removal to be performed by hand
  14. Cable end to be taken by hand from payoff drum to take-up drum.

Technical data sheet

System height (mm) 2500 mm
System width (mm) 4750 mm
System length (mm) 10800 mm
System empty weight (kg) 3500 kg
Drums- Max. weight capacity (kg) 3000 kg
Total power (kW) 22 KW
Power usage (kW) 11 KW
Min./max. rpm (rpm at drum) 0-130 giri/min
Speed max. (m/min) 0-200 m/min
Max. winding torque (N/m) 820 N/m
Size tolerance (±%) ±0,5%
Winder - Max. drum diameter (mm) 1600 mm
Winder - Max. drum width (mm) 1130 mm
Winder - Min. drum diameter (mm) 600 mm
Winder - Min. drum diameter (mm) 300 mm
Coiling head on arm - Max. coil diameter (mm) 890 mm
Coiling head on arm - Min. core diameter (mm) 320 mm
Coiling head on arm - Max. coil width (mm) 200 mm
Coiling head on arm - Min. coil width (mm) 100 mm
Payoff - Max. drum diameter (mm) 1600 mm
Payoff - Max. drum width (mm) 1130 mm
Payoff - Min. drum diameter (mm) 600 mm
Payoff - Min. drum diameter (mm) 300 mm

Accessories included

Zoom
Item no. CHIOD50-BAT

Battery-powered nail gun

DETAILS
Zoom
Item no. PZA300-15/80-S-AUT

Automatic grippers for payoff

DETAILS
Zoom

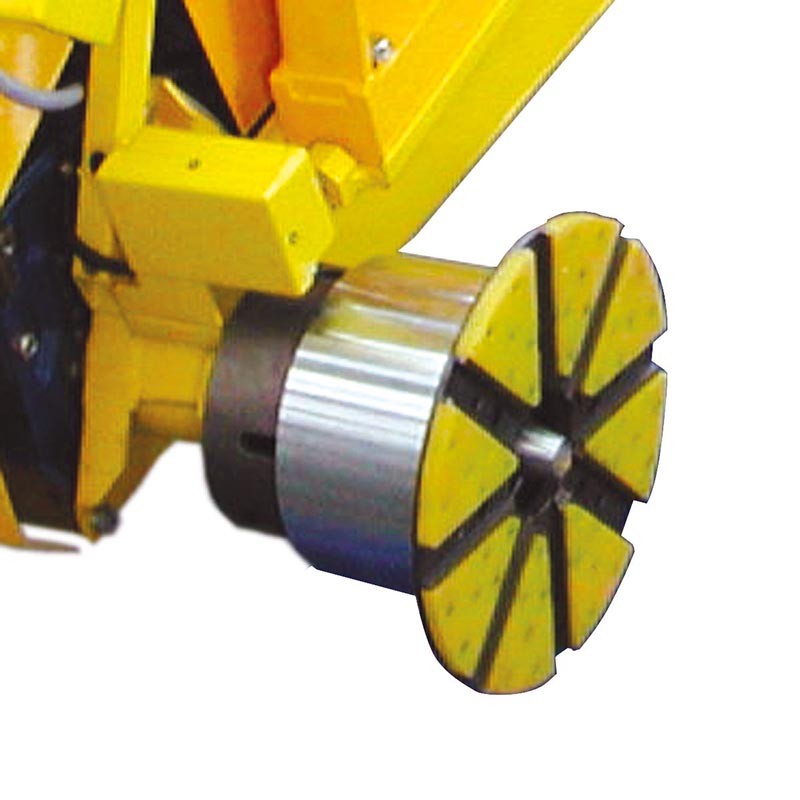

Item no. PZA300-15/80-A-AUT

Automatic grippers for payoff

DETAILS
Zoom
Item no. T-FR-OL

Hydraulic tensioning

DETAILS
Zoom
Item no. STRAT-PLC-16

Automatic layering device with LASER control

DETAILS
Zoom

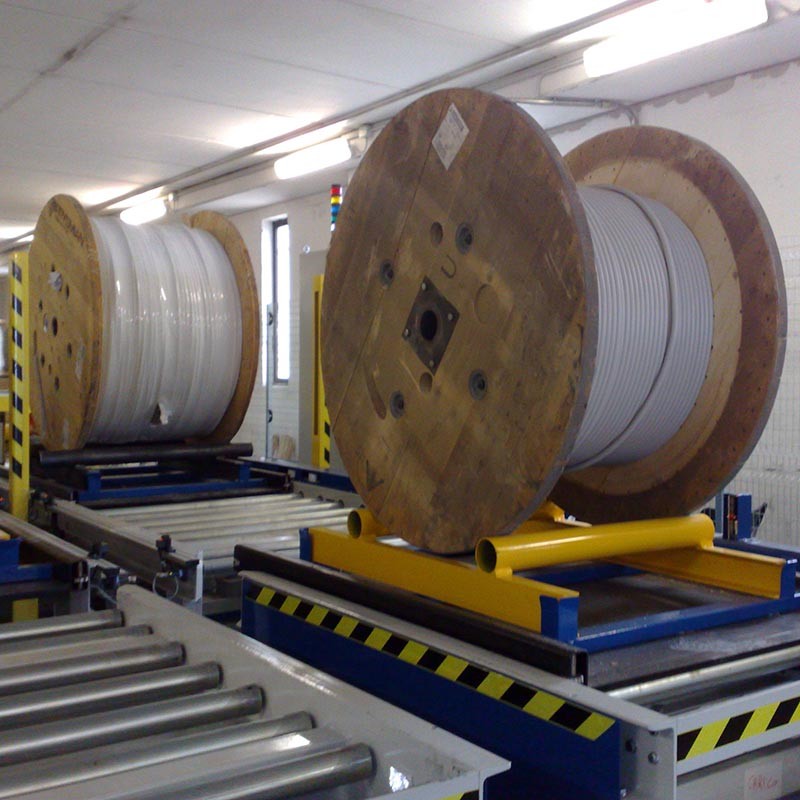

Item no. RULCAR-1-16

Automatic pallet roller conveyors

DETAILS
Art. PZA 300-15/80
Zoom
Item no. BA-LASER-AUT

Automatic drum bore detection laser barrier

DETAILS
Zoom
Item no. OE-15-B-R-10-INC

Coiling head built into arm

DETAILS
Zoom
Item no. BP-10-50-AUT

Shaft for spools max. Ø 500mm min. Ø 100mm

DETAILS
