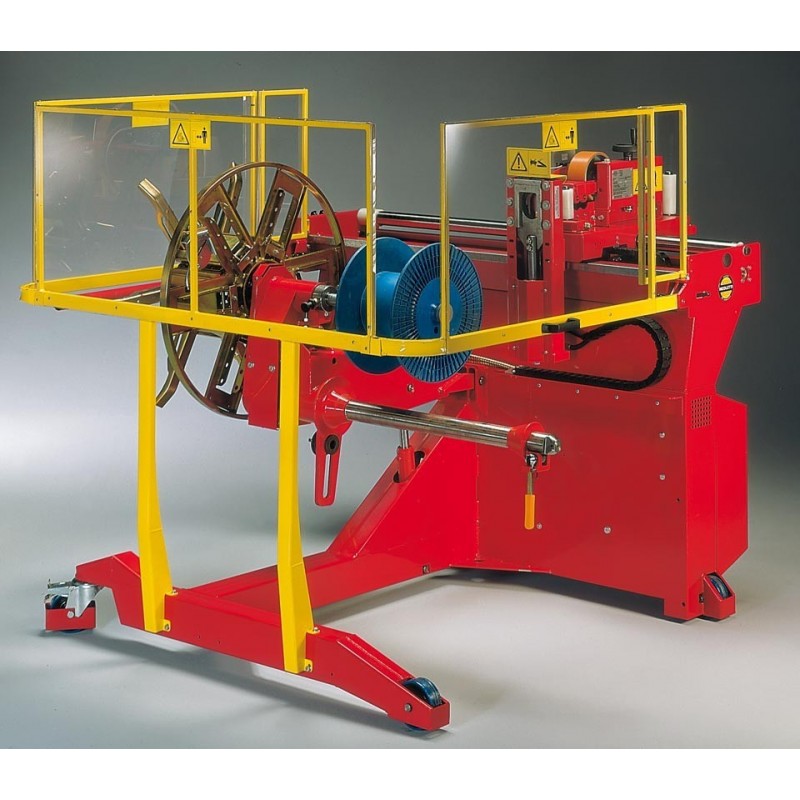

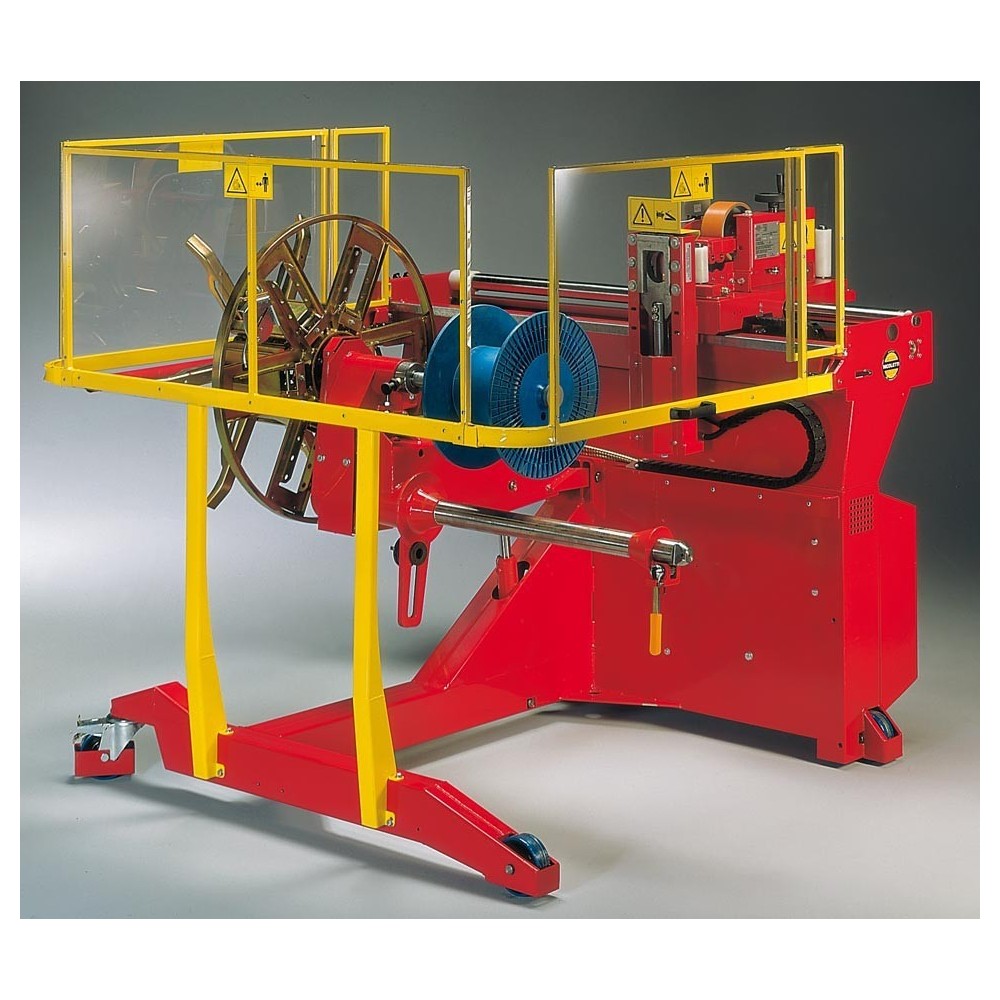

Item no. BOB-MAT-MF-MP
MEDIUM PERFORMANCE - 20-30 operations a day on average
Code:
BOB-MAT-MF/SP08-00/OA10Q60/NE-218/OE-B-10
Warning: last items in stock!
Availability date:
Technical data sheet
Machine height (mm)
1500 mm
Machine width (mm)
2000 mm
Machine length (mm)
1800 mm
Empty weight (kg)
400 kg
Drums - maximum diameter (mm)
1000 mm
Drums - minimum diameter (mm)
600 mm
Drums - Maximum width (mm)
710 mm
Drums - Minimum width (mm)
300 mm
Drums- Max. weight capacity (kg)
700 Kg
Coils - max. internal core diameter (mm)
620 mm
Coils - min. internal core diameter (mm)
320 mm
Coils - maximum width (mm)
220 mm
Coils - minimum width (mm)
115 mm
Coils - max. diameter (mm)
950 mm
Max. coil weight
250 kg
Total power (kW)
1,5 KW
Torque
274 Nm
Machine movement speed
4 Km/h
Min./max. rpm (rpm at drum)
0-70 g/min
Accessories included

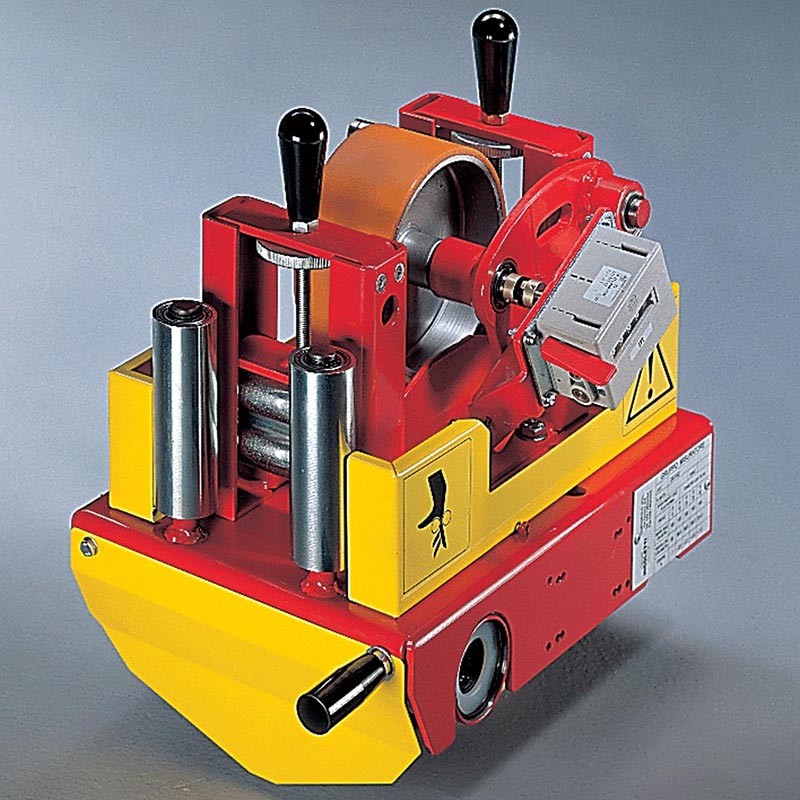

OA/10Q60
Measuring device for cable diameters 5-60 mm.
Tolerance ±1.5% (coated round cables).
NB: option of fitting measuring meter for cable diameters from min. 5mm to max. 100 mm.
JJe5DICuCag
Technical data sheet
Machine height (mm)
380 mm
Machine width (mm)
400 mm
Machine length (mm)
400 mm
Weight (kg)
32 kg
Cable min./max. diameter (mm)
5-60 mm
Measuring accuracy
± 1,5 %

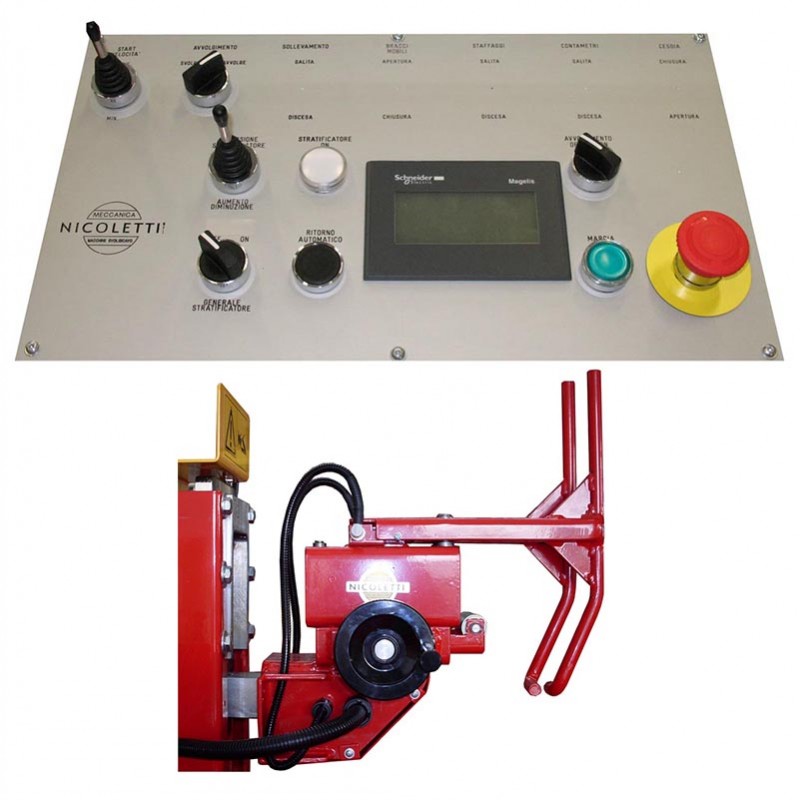

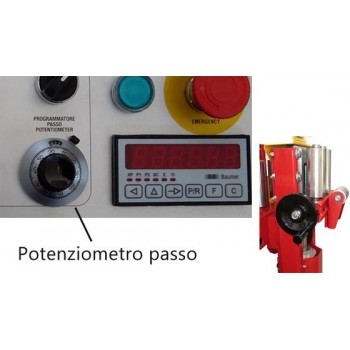

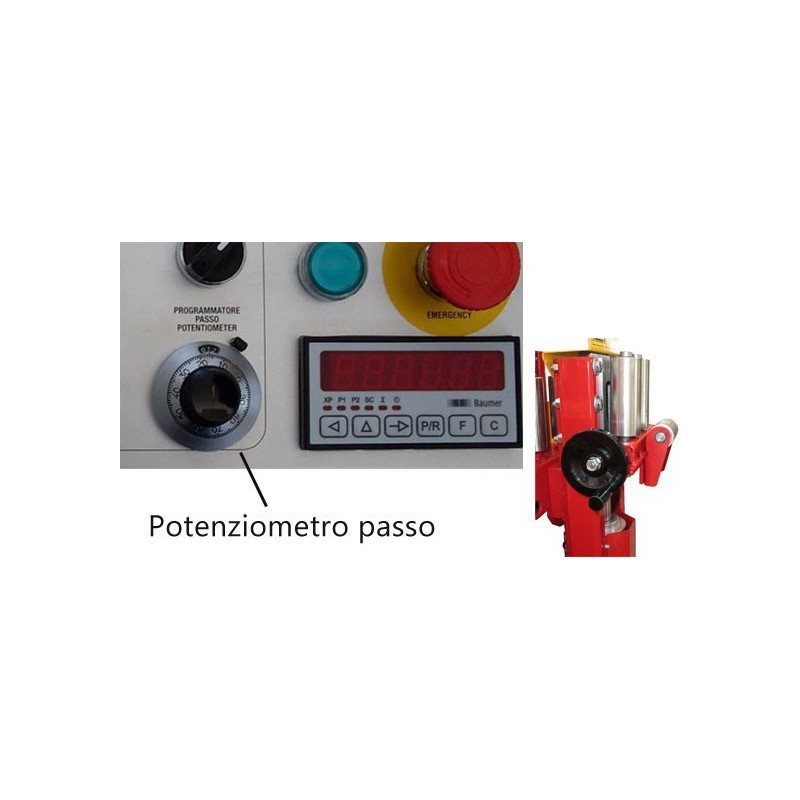

SP-08/00
Automatic layering device
For even cable layering across the drum:
Layering AUTOMATIC with proportional system and with manual pitch setting (potentiometer) with no perpendicularity control
Quick and functional programming.
Settings can be entered for cable diameters min. 5mm to max. 100mm
With this accessory combined with the detector for sudden movement, make the winding operation entirely possible in automatic way, without the presence of the operator.
Possibility of manually correcting the layering reversing (non-parallel reel flanges)
Possibility to regain manually perpendicularity delays (wrong setting of the cable diameter)
dis3haixoFc

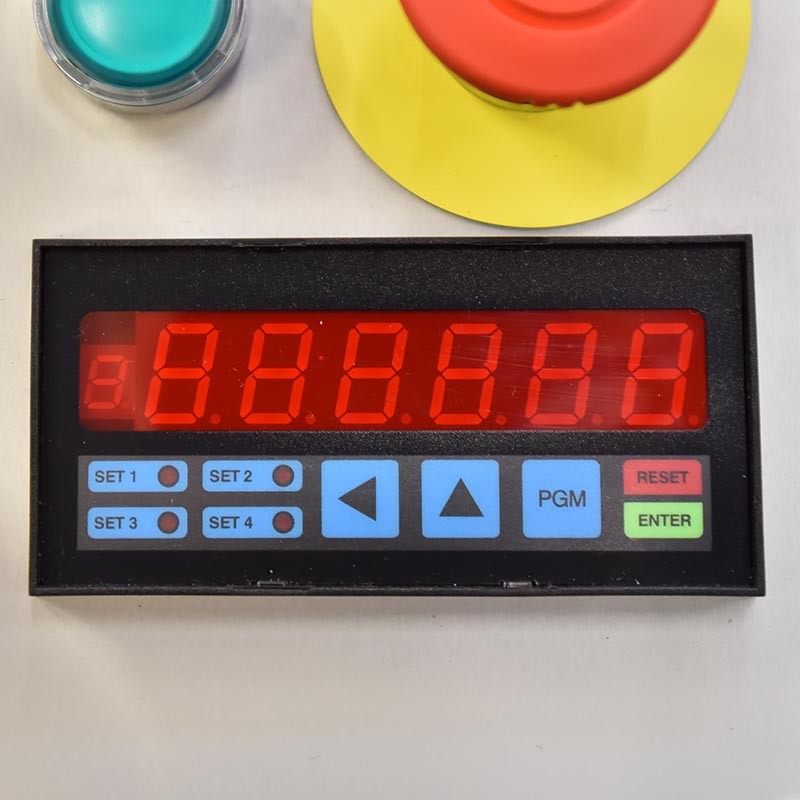

NE-218
Electronic programmer/counter
6-digit measuring meter/programmer, encoder based.
Product code:
Watch video

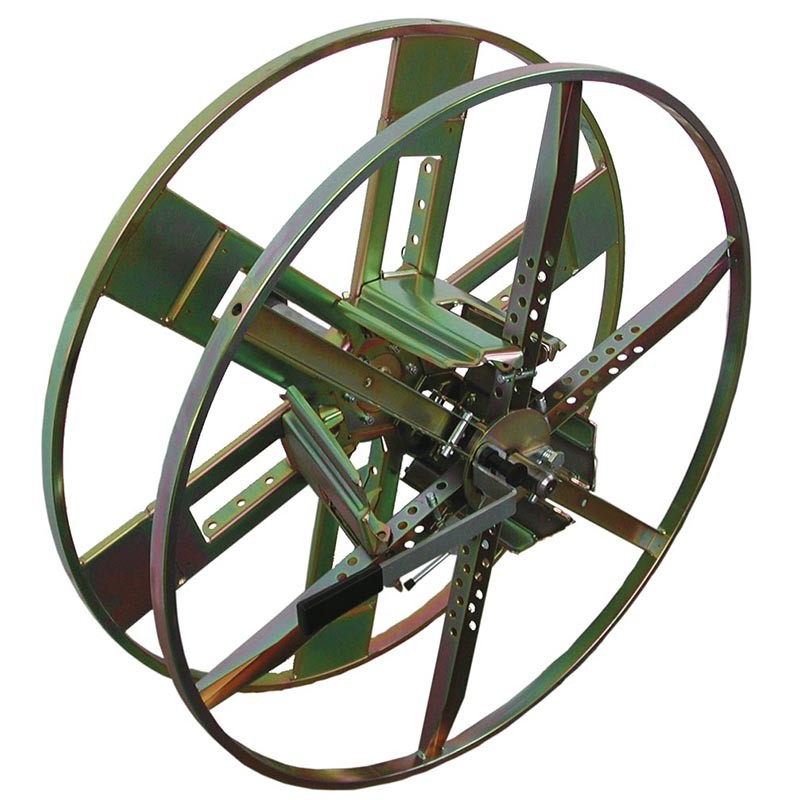

OE-B-10
Coiling head with removable flange.
ORUhUBW6Dk8
Technical data sheet
Height (mm)
1000 mm
Width (mm)
450 mm
Length (mm)
1000 mm
Weight (kg)
40 kg
Core - min. diameter (mm)
320 mm
Core - max. diameter (mm)
620 mm
Coil - max. width (mm)
220 mm
Coil - min. width (mm)
115 mm
Coils - max. diameter (mm)
950 mm
Max. coil weight
250 kg
RIL-MOVE-2-MF
Electromechanical machine movement detector for BOB-MAT-MF
In case of troubles, such as cable twisting, which interrupts the correct unwinding of the reel, causing tearing or cable stoppage (mechanical blockage) and which could cause accidents or damage to machine and racking, this accessory may interrupt the operation of the machine.
An essential accessory for unattended winding with the NE-218, allowing for maximum safety even at high speeds.
WARNING: Automatic winding in a safe area
2BoVkMocW7Y
Product code:
Watch video
Accessories on request
BP-10-50
Shaft for spools max. Ø 500mm min. Ø 100mm
Shaft complete with support enabling the machine to handle spools with a diameter less than 600mm (from minimum 100mm to maximum 500mm bore 40mm) with shaft diameter 30mm, quick-fit on a coaxial power takeoff; other diameters on request operating speed from 0 to 120 rpm 3KHXrtpiwEU
RIP-MOB-MF
GUARD WITH SLIDING DOOR TO ACCESS DRUM SHAFT DRIVE BAR ADJUSTMENT
_bo21IajIUc

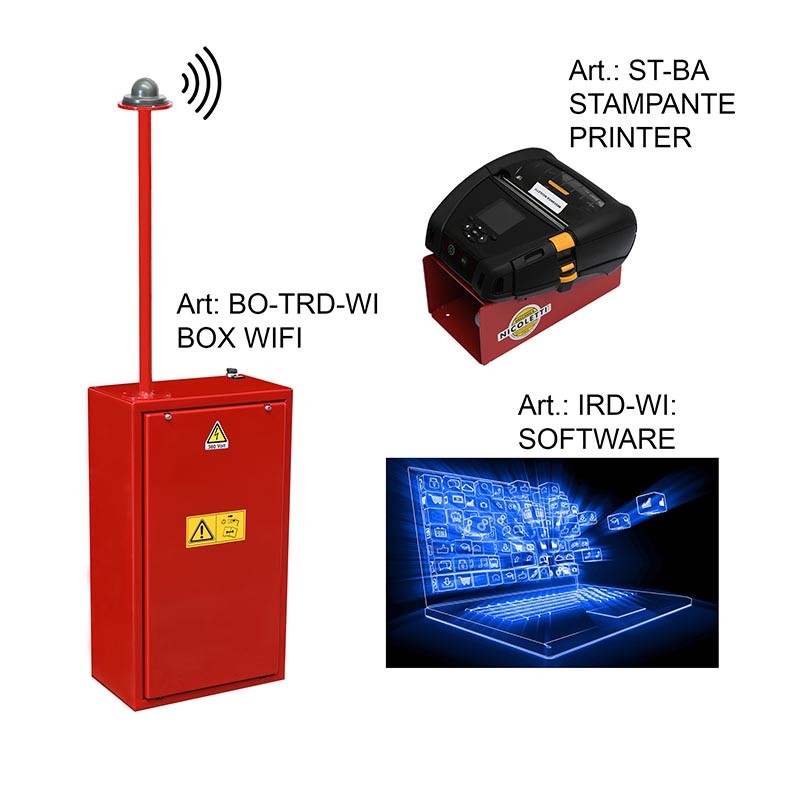

KIT-WI
Kit for wireless data communication
KIT FOR WIRELESS DATA COMMUNICATION
N. 1 Art. BO-TRD-WI:
Box for wireless data transmission
REMARK: WLAN coverage for the working area is needed
N. 1 Art. ST-BA:
Label printer (size 102x152 BARCODE white paper)
N. 1 Art. IRD-WI:
Software for data sending/receiving and picking logics
Example for data exchange between ERP and the machine:
Cable cut identification code no.
Required cable length to be cut in meters
Cable typology (ex. rubber lining, flexible, etc)
Cable composition (ex. 4x1,5 – 5x 6);
Drum racking warehouse location (ex. warehouse #1)
Location for drum racking row
Location for drum racking lane
Location for drum racking level (ex. 2nd level)
Return data for ERP:
Return for cable cut identification code
Return for cut cable length in meters
Product code:
ADD TO QUOTE
Watch video
TC-1-60-SE-ST
Shears for cables max. Ø 60mm
Electro-hydraulic cutter for cutting cables up to diameter 60mm.
The kit includes electro-hydraulic lifting and electro-hydraulic jacks.
Z0Jb9I62xrs

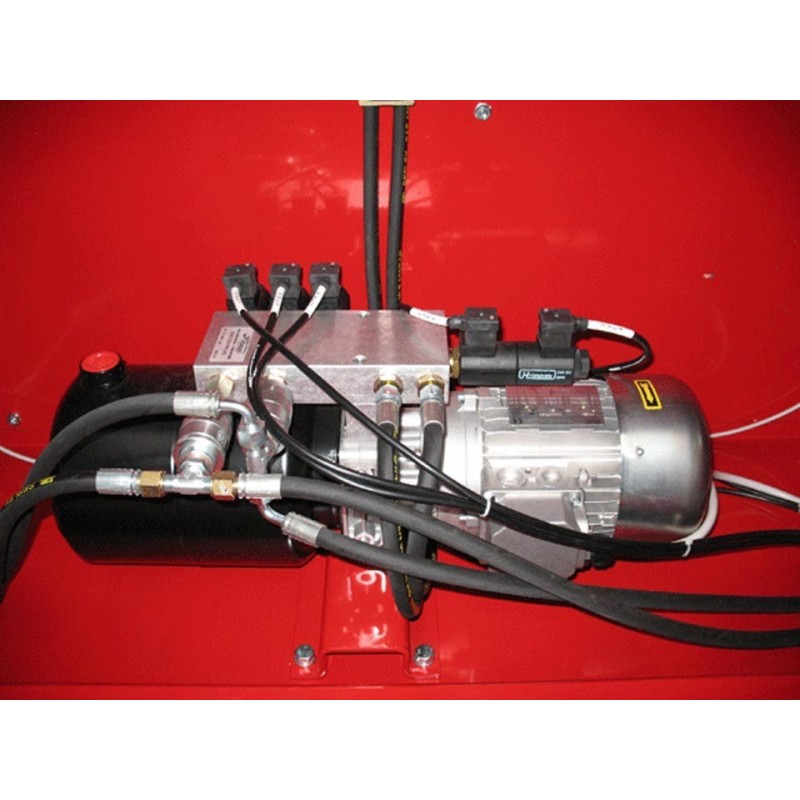

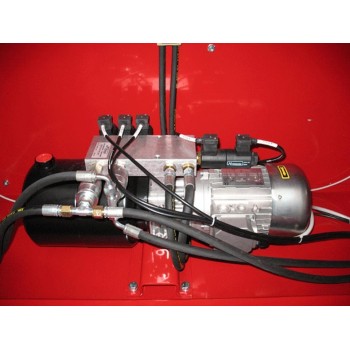

SE-ST
Lifting power pack and jacks
Lifting driven by electro-hydraulic power pack. Complete with electro-hydraulic jacks.
NB: if you have selected item no TC-1-60-SE-ST, this optional extra is already included, so there is no need to select it

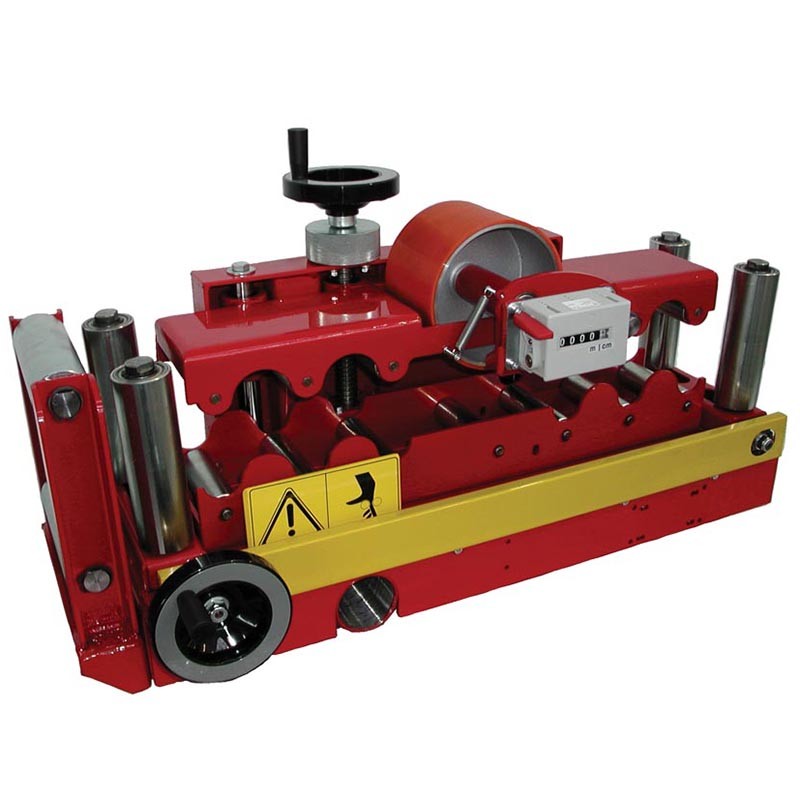

OA/10Q/60/OM/N/I-S
Mechanical precision counter with display
Measuring meter with in-house type approval with counter
mYv2dASpC9M
Technical data sheet
Height (mm)
450 mm
Width (mm)
370 mm
Length (mm)
640 mm
Weight (kg)
60 kg
Cable min./max. diameter (mm)
5-60 mm
Measuring accuracy
± 0,5 %
Product code:
ADD TO QUOTE
Watch video

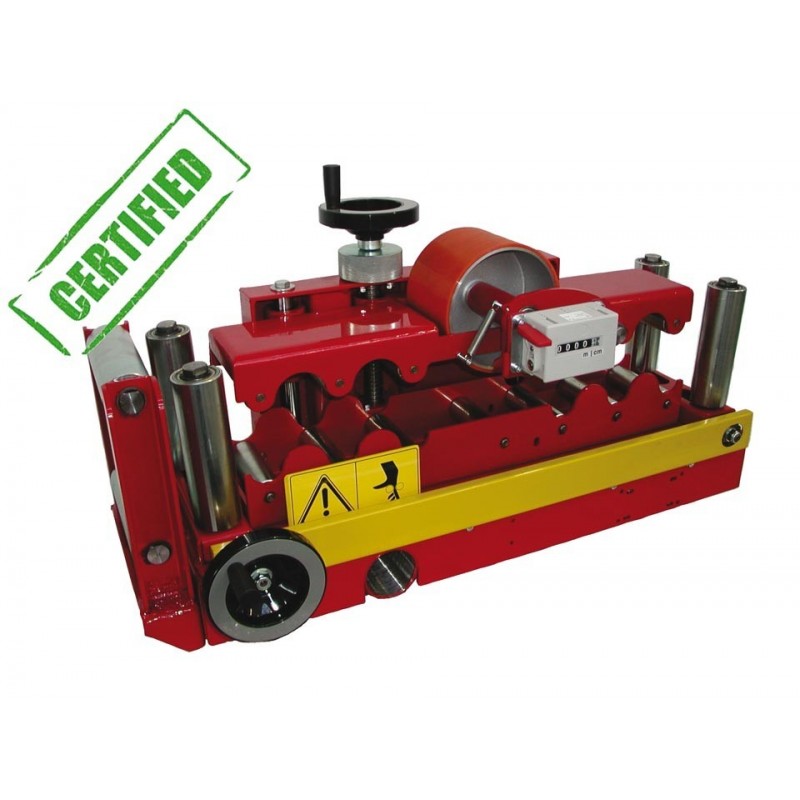

OA/10Q60/OM/MID-SN
Electronic precision counter with display
MID EUROPEAN TYPE APPROVAL
Replaces OA/10Q60
Technical data sheet
Height (mm)
450 mm
Width (mm)
370 mm
Length (mm)
640 mm
Weight (kg)
60 kg
Cable min./max. diameter (mm)
5-60 mm
Measuring accuracy
± 0,5 %
OA10Q60OM-APRI
Facilitates the entry of any type of cable.
Possibility of winding and measuring also headed cables, for example with sockets, which otherwise would not pass through the meter counter.
Suitable for meter heads 5- 60mm
Accessory not compatible with cutter
Replaces the meter head among the accessories included.
AyPyFsNcwlg
VSFC0011-BOB
Variable minimum and maximum pulling adjustment according to the drum/coiling head (see table) to wind fiber-optic and small sized sensitive cables.
Drive unit with variable torque adjustment
Potentiometer to adjust the pulling
Product code:
ADD TO QUOTE
Watch video

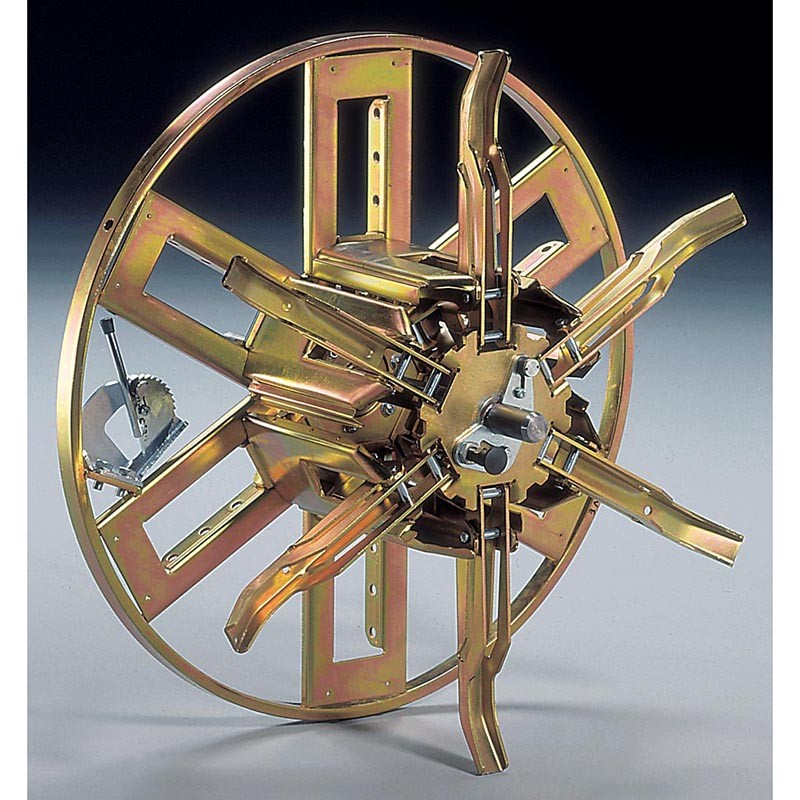

OE-B-R-10-S
NB: replaces item no. OE-B-10
Coiling head in collapsible version
Retainer arms collapse against core (thus there is no need to remove the rotating flange)
Fixed core diameter: 320mm OR 520mm
Yqgu1koyzmM
Technical data sheet
Height (mm)
1000 mm
Width (mm)
450 mm
Length (mm)
1000 mm
Weight (kg)
40 kg
Core - max. diameter (mm)
520 mm
Core - min. diameter (mm)
320 mm
Coil - max. width (mm)
200 mm
Coil - min. width (mm)
90 mm
Coils - max. diameter (mm)
950 mm
Max. coil weight
250 kg
OE-400
Quick-release coiling head
Quick-release coiling head Fixed expanding core Quick-release front flange 3 x strapping at 120°. Overall dimensions: Ø400mm thickness 260mm Weight: 15 kg Core diameter: can be ordered with fixed diameter in 80 to 260mm range (increments of 20mm) Core width: can be ordered with width in 4 0 to 140mm range (increments of 20mm) Coil weight capacity: 30kg OrrfKq1v6do
Technical data sheet
Height (mm)
400 mm
Width (mm)
250 mm
Length (mm)
400 mm
Weight (kg)
15 kg
Core - max. diameter (mm)
260 mm
Core - min. diameter (mm)
80 mm
Coil - max. width (mm)
140 mm
Coil - min. width (mm)
40 mm
Max. coil weight
30 kg
ERCA-LV
FOR MOVING THE UNIT WHEN EMPTY
Select front or side fitting (see accessories)
AC motor-driven wheel for moving the machine when empty.
Power 0.37kW
Variable movement speed 0-27 m/min
Forward-reverse
NB: if you select this optional extra, it must be used in conjunction with castors for moving the machine across
fXh1-wmsIGQ
Product code:
ADD TO QUOTE
Watch video
ATL-LV-BOB
Side fitting for ERCA empty
fXh1-wmsIGQ
ATF-LV-BOB
Front fitting for ERCA empty
Fitting for ERCA-LV
FRONT
fXh1-wmsIGQ
BA-ERCA-LV
Battery for moving machine independently when empty
24V DC battery-powered power supply unit complete with battery charger for item no. ER-CA-LV The machine can be moved without connecting it to the mains when transferring from one line of racks to another or for independent handling (transferring empty drums) Runtime 8 hours Charge time approx. 8 hrs (overnight). Maintenance-free sealed batteries. Battery life 6-8 years
BBN5Ye9SZL8
Product code:
ADD TO QUOTE
Watch video
ERCA-PC
FOR MOVING THE UNIT WHEN LOADED
Select front or side fitting (see accessories)
AC motor-driven wheel for moving the machine when loaded.
Power 1.50 kW
Variable movement speed 0-27m/min
Forward/reverse
NB If you select this optional extra, it must be used in conjunction with castors for moving the machine across
fXh1-wmsIGQ
ATL-PC-BOB
Side fitting for ERCA heavy and loaded
fXh1-wmsIGQ
ATF-PC-BOB
Front fitting for ERCA loaded
fXh1-wmsIGQ
Product code:
ADD TO QUOTE
Watch video
BA-ERCA-PC
Battery for moving machine independently when loaded
24V DC battery-powered power supply unit complete with battery charger for item no. ER-CA-PC The machine can be moved without connecting it to the mains when transferring from one line of racks to another or for independent handling (transferring drums) Runtime 8 hours Charge time approx. 8 hrs (overnight). Maintenance-free sealed batteries. Battery life 6-8 years
BBN5Ye9SZL8
BA-BOB/24/180
Battery-powered power supply for running machines fully independent from 220-380V mains
24V DC battery-powered power supply unit complete with battery charger. Runtime 8 hours Runs the machine fully. No mains connection required
When 24V DC power supply is out of service, the machine can be switched back to 220V AC. Charge time approx. 8 hrs (overnight). Maintenance-free sealed batteries. Battery life 6-8 years O8Yjavvl1Q8

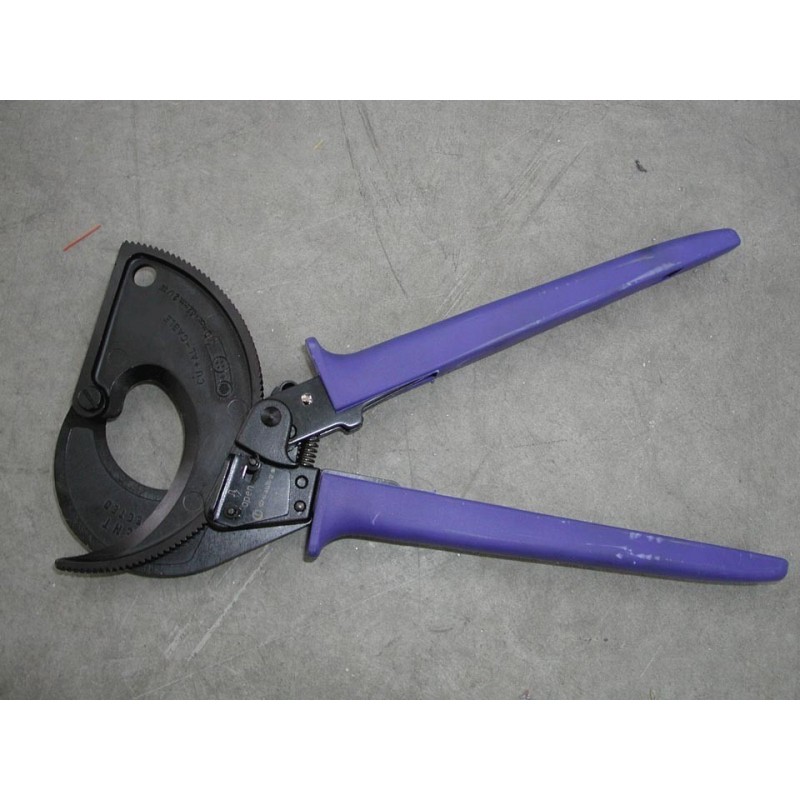

TC-40
Manual ratchet-action cable cutters for copper and aluminium cables.
Weight 0.89 kg
Length 310mm
Maximum cutting Ø 52mm
rlNqyhcptGg
Product code:
ADD TO QUOTE
Watch video
COL-LANE-1
Slip ring overhead cable connection
Slip ring for supplying power to the machine from above
CHIOD50-BAT
Battery-powered nail gun 18V Pre-compressed air chamber shooting Load capacity 47 nails Weight 4.8 kg Kit contents: 2 batteries and 1 battery charger Very powerful
Fast Well balanced. Max. nail length 50-90 mm Nail diameter 6.8-7.7 mm
J3B_v7NmtPw
TC-BA-30
Battery-powered cable cutters
Battery-powered cable cutters for copper and aluminium cables. Maximum cutting Ø 32mm Cutting time 4 sec. Two cutting speeds Weight 3.0 kg. Battery 1x1.5Ah yLd3DdYSESk
