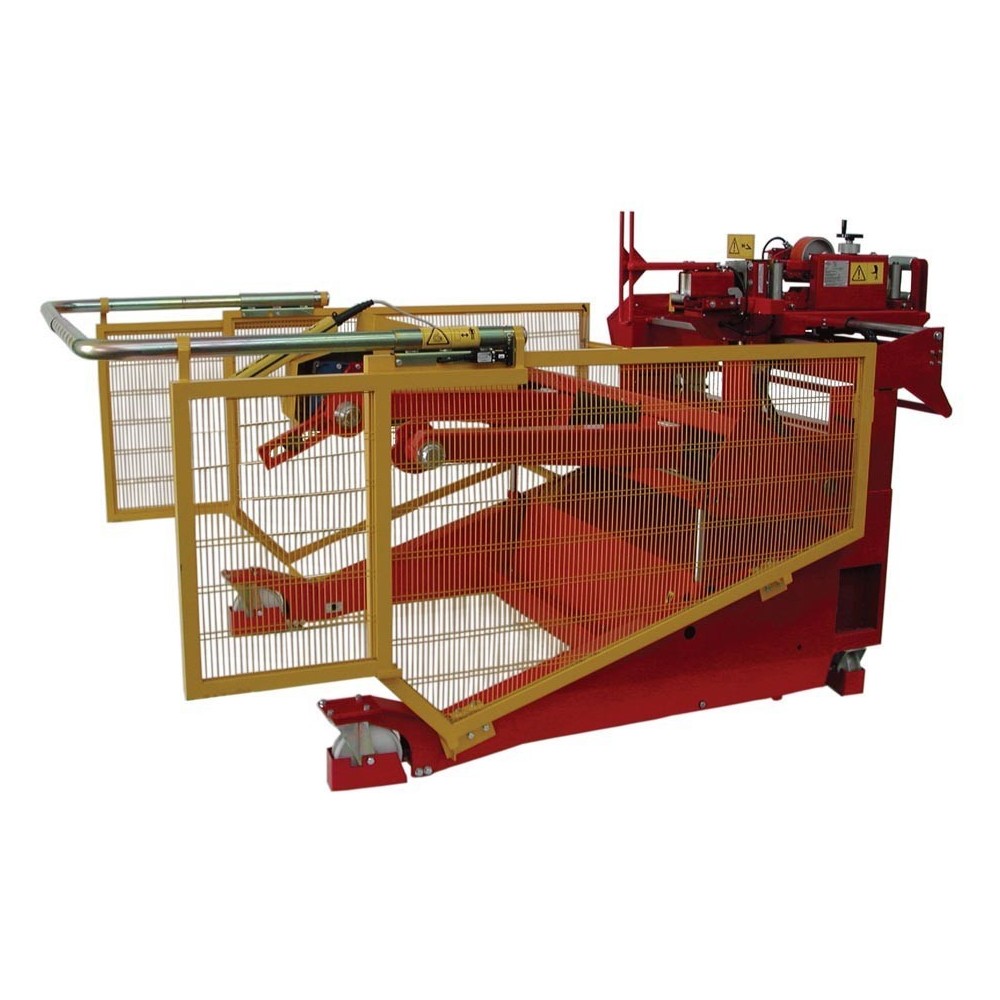

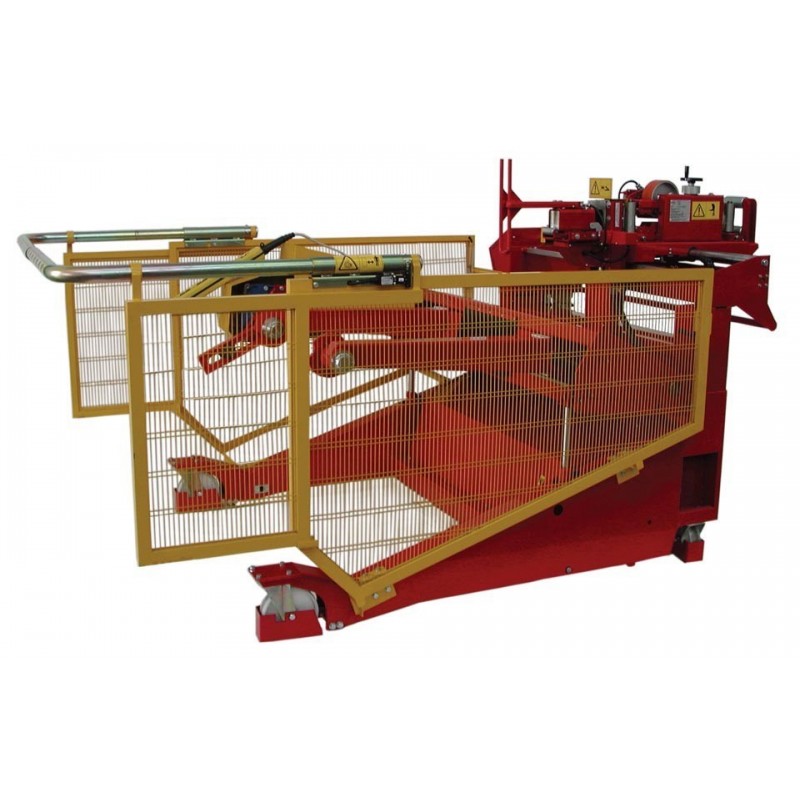

CD-22/M3/BM - Weight capacity 4000 kg - Drums min. Ø 800mm max. Ø 2200mm LOW PERFORMANCE - max. 20 operations a day on average

CD-22/M3/BM - Weight capacity 4000 kg - Drums min. Ø 800mm max. Ø 2200mm

CD-22-M3-BM2/SE1/ST-EL/OA10Q60

Features

  • Lifting arms
  • CE-approved safety guards fitted for protection.
  • Electro-hydraulic lifting.
  • VULKOLLAN wheels (two wheels and two castors).
  • Electro-hydraulic parking jacks.
  • AC variable-speed winding unit, continuous speed adjustment 0-70 rpm.
  • Supply voltage 380 V three phase (to be confirmed at order stage)

Technical data sheet

Machine height (mm) 1700 mm
Machine width (mm) 2990 mm
Length with guards on (mm) 4200 mm
Empty weight (kg) 1600 kg
Drums - maximum diameter (mm) 2200 mm
Drums - minimum diameter (mm) 800 mm
Drums - Maximum width (mm) 1540 mm
Drums - Minimum width (mm) 490 mm
Drums- Max. weight capacity (kg) 4000 kg
Total power (kW) 6.5 KW
Torque 843 Nm
Machine movement speed 4 km/h
Min./max. rpm (rpm at drum) 0-70 g/min

Accessories included

Item no. OA/10Q60

Cable measuring device

DETAILS
Item no. SE-ST

Lifting power pack and jacks

DETAILS

Accessories on request

Item no. RIL-MOVE-2

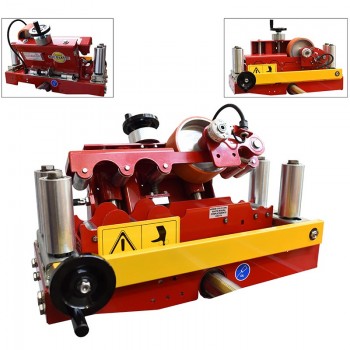

Motion detector

ADD TO QUOTE
DETAILS
Item no. OE-B-22

Coiling head

ADD TO QUOTE
DETAILS
Item no. RG-22-40

Rear castors

ADD TO QUOTE
DETAILS

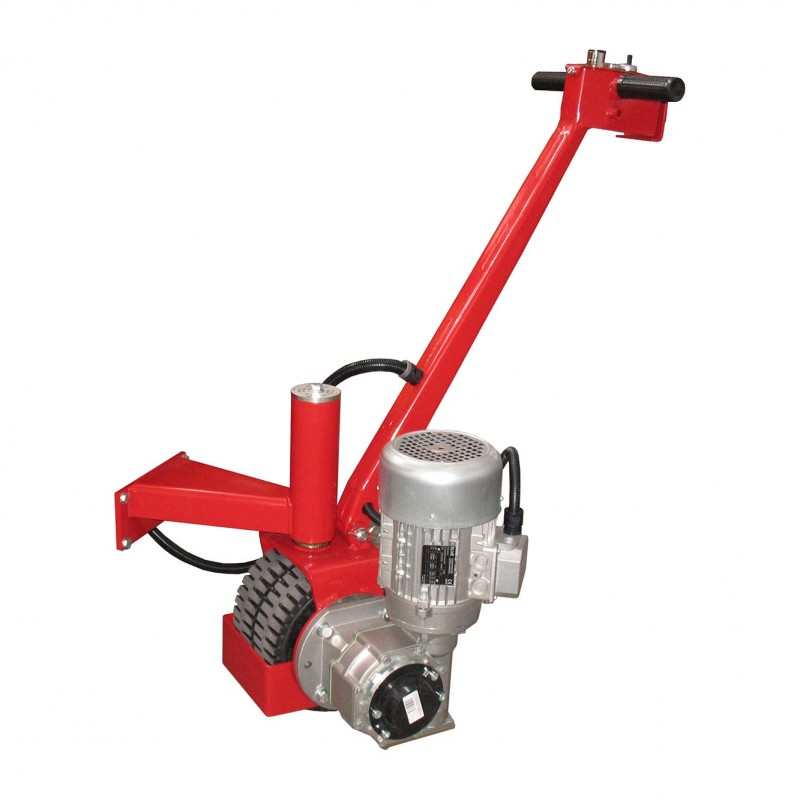

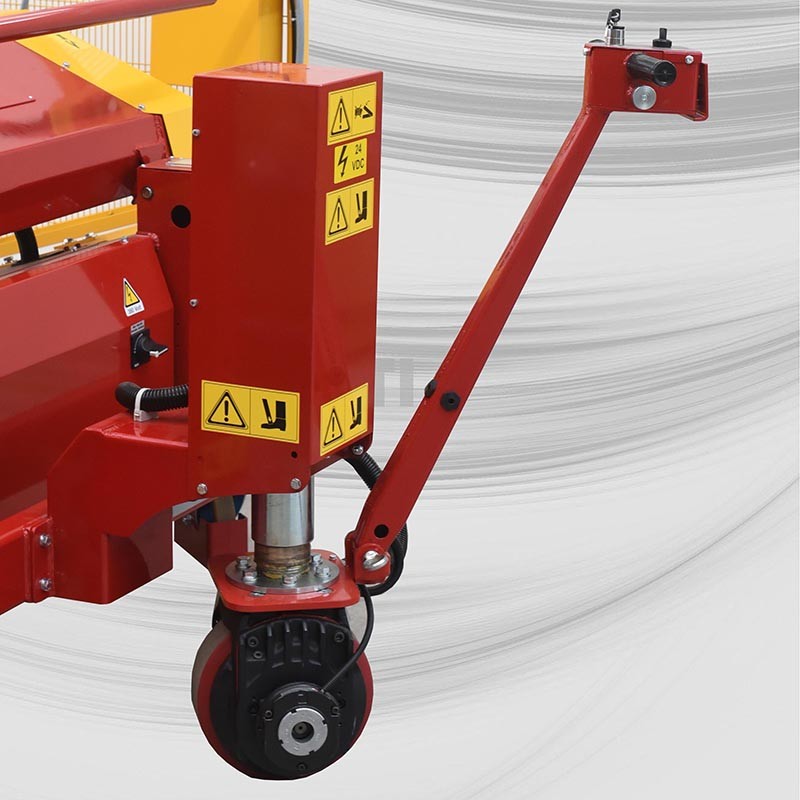

Item no. ERCA-PV

FOR MOVING THE UNIT WHEN EMPTY

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS

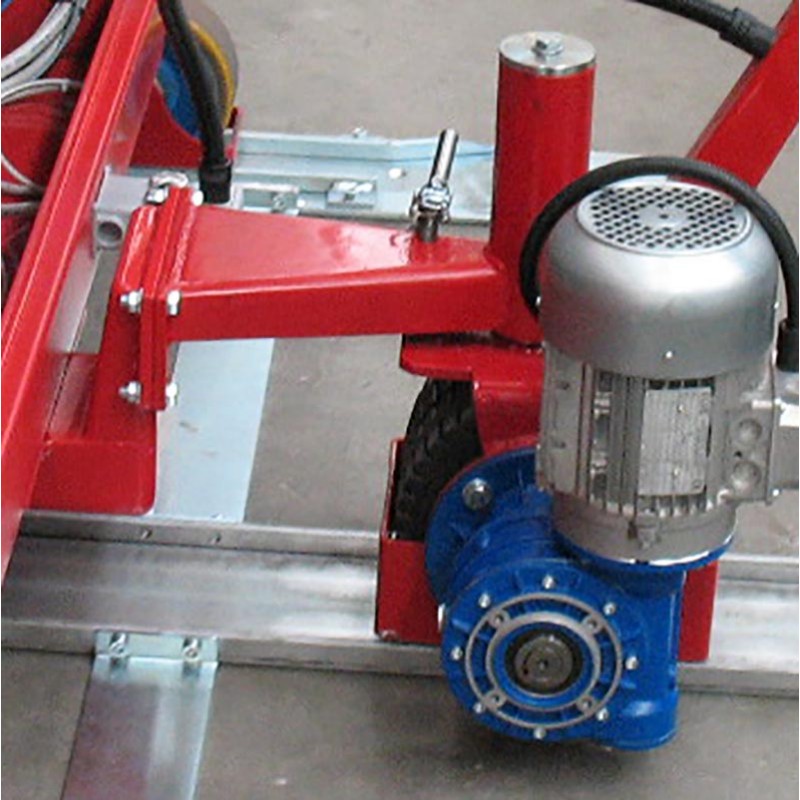

Item no. ATL-PV-CD22/40

Side fitting for ERCA empty

ADD TO QUOTE
DETAILS
Item no. ATF-PV-CD22/40

Front fitting for ERCA empty

ADD TO QUOTE
DETAILS
Item no. BA-ERCA-PV
ADD TO QUOTE
DETAILS

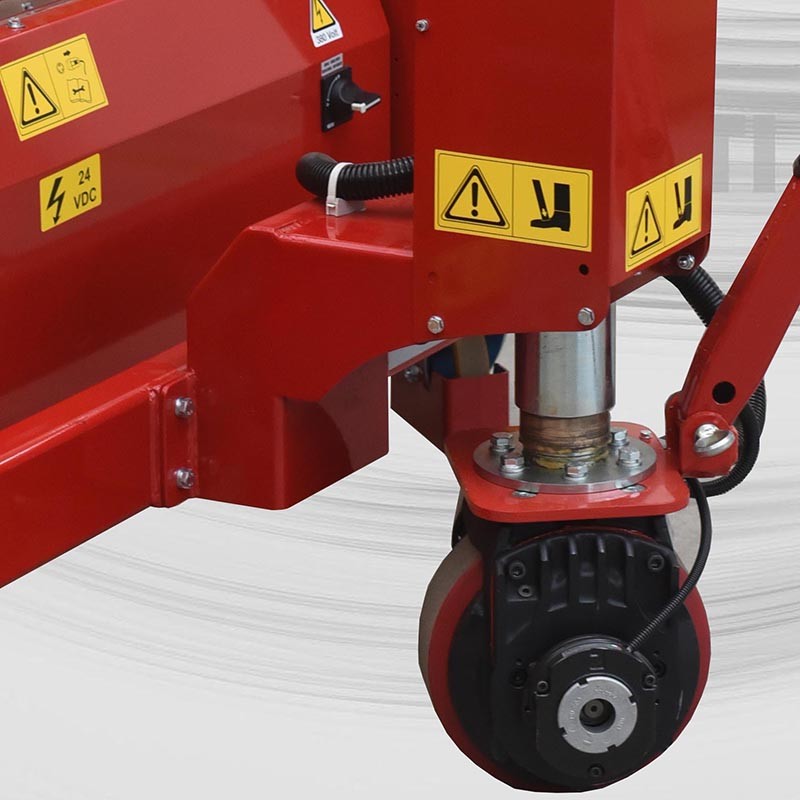

Item no. ERCA-PC

FOR MOVING THE UNIT WHEN LOADED

Select front or side fitting (see accessories)

ADD TO QUOTE
DETAILS
Item no. ATL-PC-CD22/40

Side fitting for ERCA loaded

ADD TO QUOTE
DETAILS
Item no. ATF-PC-CD22/40

Front fitting for ERCA loaded

ADD TO QUOTE
DETAILS

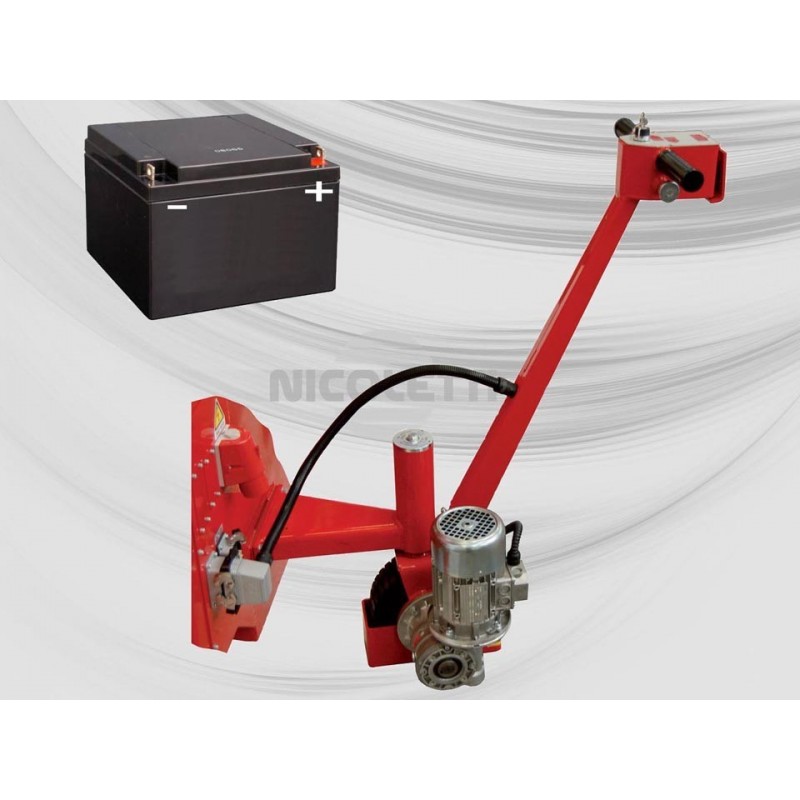

Item no. BA-ERCA-PC

Battery for moving machine independently when loaded

ADD TO QUOTE
DETAILS
Item no. FUN-TRA

Draw rope for attaching cable

ADD TO QUOTE
DETAILS
Item no. TC-BA-30

Battery-powered cable cutters

ADD TO QUOTE
DETAILS

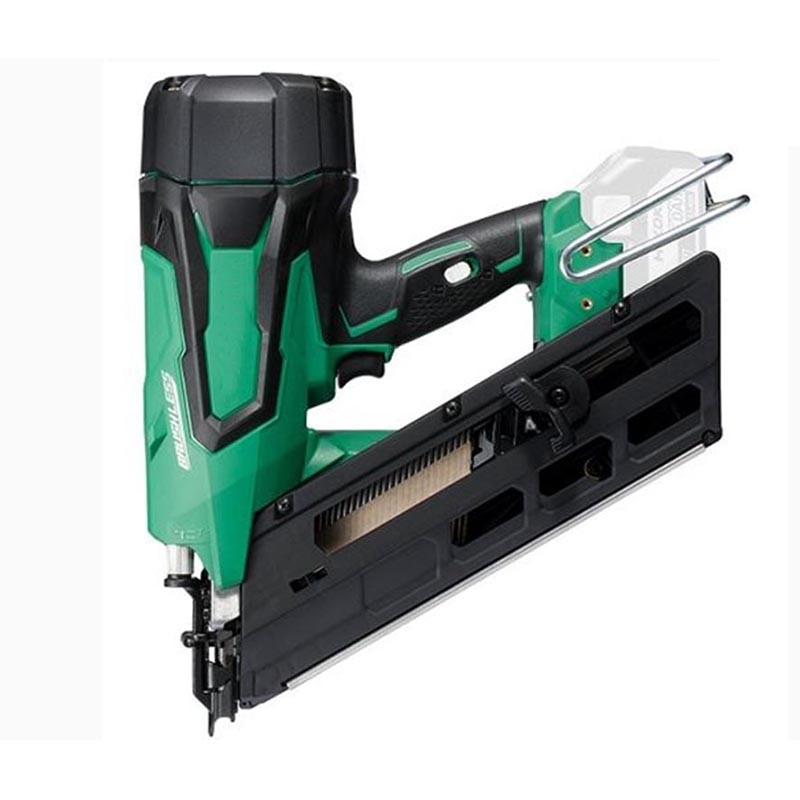

Item no. CHIOD50-BAT

Battery-powered nail gun

ADD TO QUOTE
DETAILS
